Productinformatie "ESX QUANTUM QE Subwoofer 20cm (8inch) QE822"

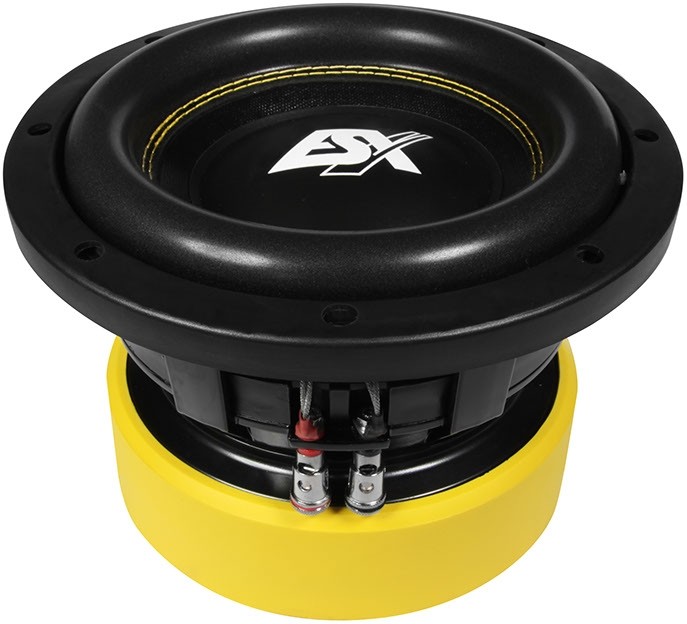

ESX QUANTUM QE Subwoofer 20cm (8inch) QE822
Specs:
- Power Rating 400/800 Watts RMS/max.
- Impedance 2 + 2 Ohms
- 64 mm Dual Voice Coil
- 126 oz (3,6 kg) Dual Magnet Driver
- Installation Depth 138 mm
- Installation Opening: 163 mm
The new QUANTUM QE subwoofers impress with their very compact design. The QE622 subwoofer is almost daintily, but with its aluminum die-cast basket, the dual magnet driver with 2 x 40 oz and the sewn bead, he signals: "Caution, it can become very loud!" The slightly larger QE822 has a powerful 2 x 63 oz double magnet and just like the QE622 a pole core bore and also a ventilated T-Plate for optimal cooling. The QE622 has a large 2 "(50 mm) voice coil with an RMS Power Rating of 250 Watts and the QE822 even a 2.5" (64 mm) Voice Coils with a Power Rating of 400 Watts RMS. Extremely long-wound voice coils of 30 or 36 mm winding height allow both woofers a linear stroke of +/- 10 mm. Both woofers have a double voice coil with 2 + 2 ohms each. This can be used to configure impedances of 1x4 Ohm or even 1x1 Ohm. Without problems, several subwoofers can also be operated in series on an amplifier.
